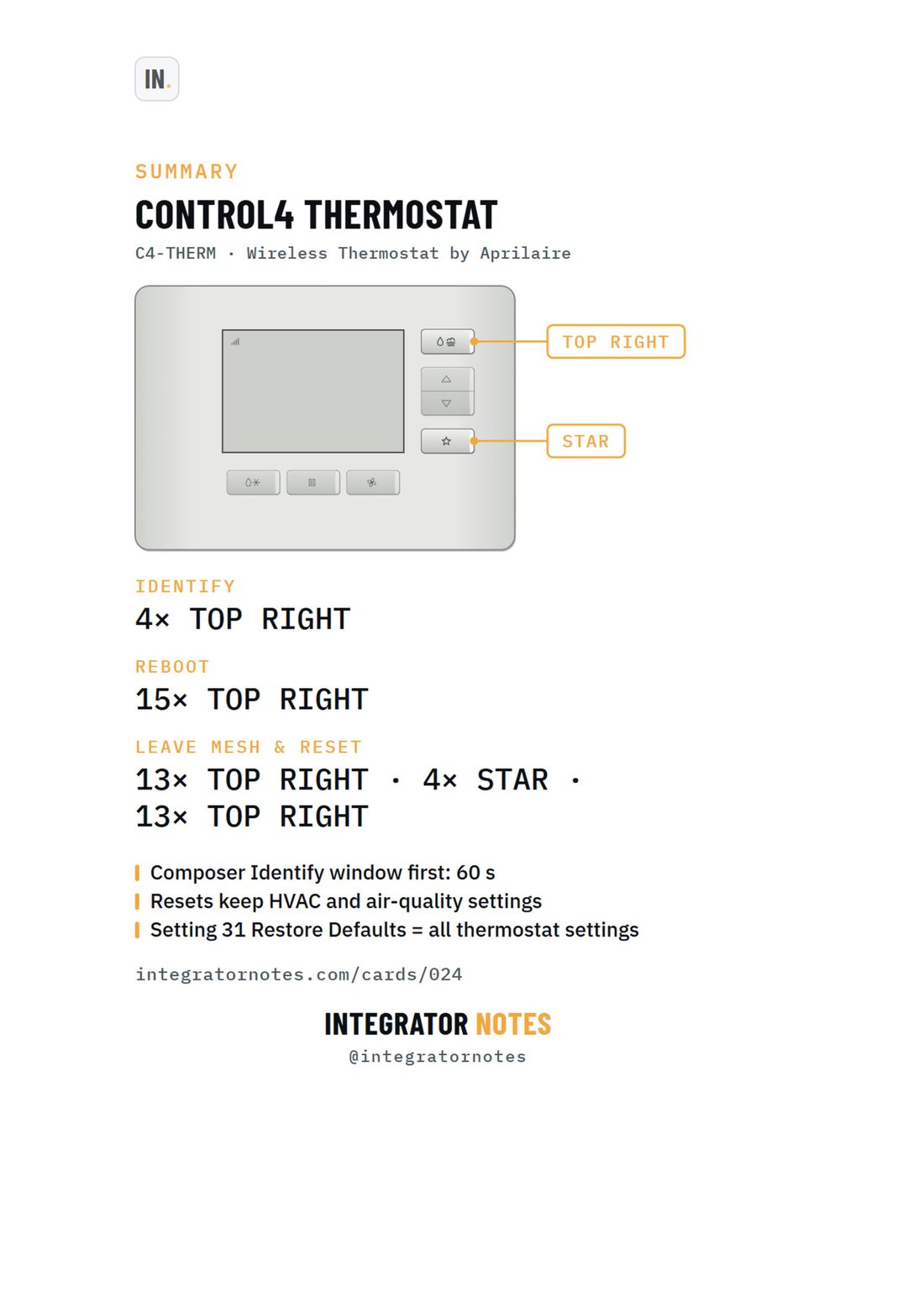

Field card 024, Wireless thermostat (C4-THERM): Tap the top-right button 4×, Tap the top-right button 15×, Tap the top-right button 13×, Tap the star button 4×, Tap the top-right button 13× again
A4 · PDF · prints in black and white Open full size
Control4TroubleshootingCard 024

Control4 Wireless thermostat (C4-THERM)

Identify 4× · reboot 15× · leave mesh & reset 13-4-13

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before you rely on it on a job.

The sequence

  1. Tap the top-right button 4×
  2. Tap the top-right button 15×
  3. Tap the top-right button 13×
  4. Tap the star button 4×
  5. Tap the top-right button 13× again

Good to know

  • Composer Identify window first: 60 s
  • Resets keep HVAC and air-quality settings
  • Setting 31 Restore Defaults = all thermostat settings
Download PDF Print
