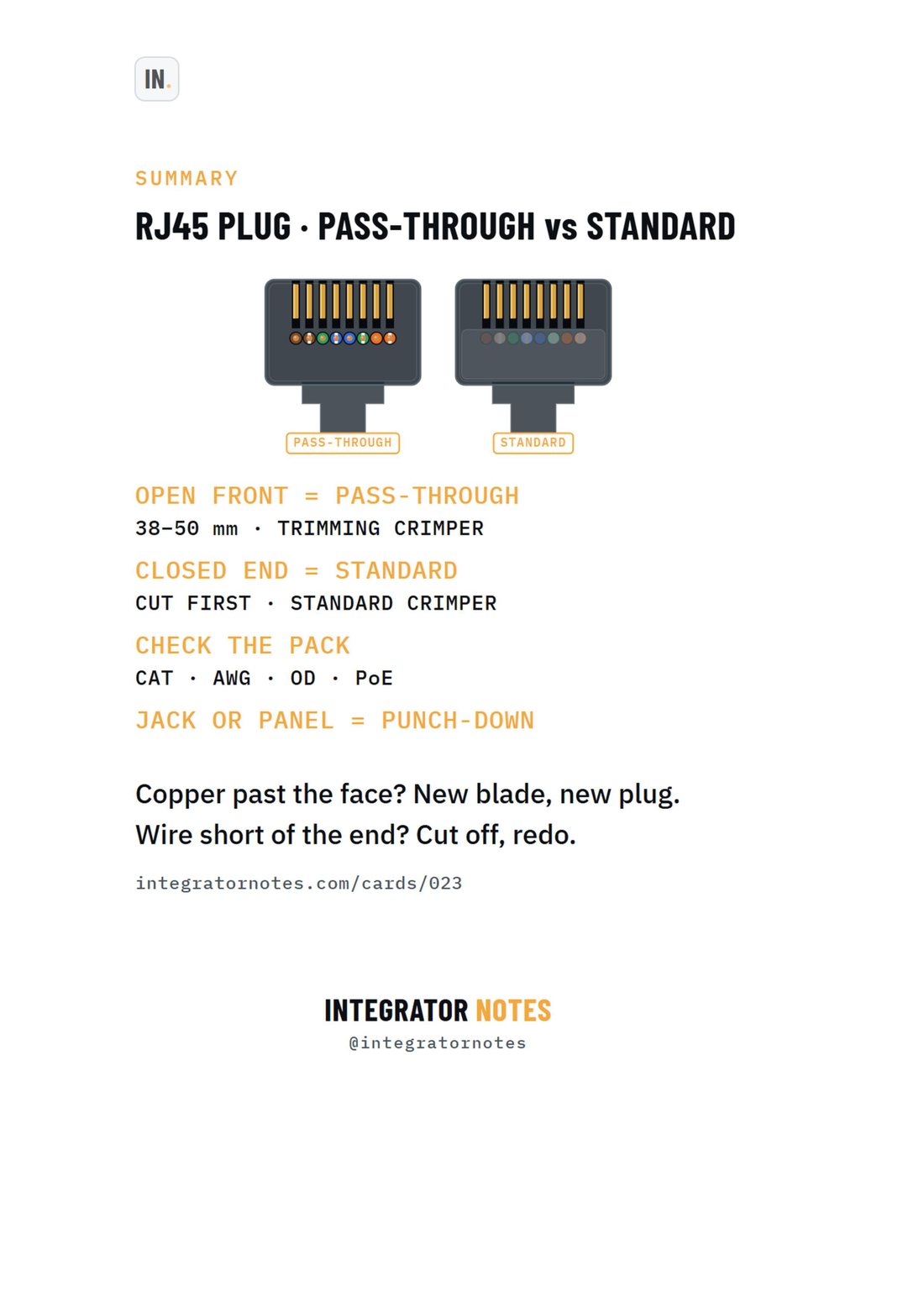

Field card 023, RJ45 plug · pass-through vs standard: OPEN FRONT = PASS-THROUGH 38–50 mm · TRIMMING CRIMPER, CLOSED END = STANDARD CUT FIRST · STANDARD CRIMPER, CHECK THE PACK CAT · AWG · OD · PoE, JACK OR PANEL = PUNCH-DOWN
A4 · PDF · prints in black and white Open full size
CablingTerminationCard 023

RJ45 plug · pass-through vs standard

Which plug, which crimper, when

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before you rely on it on a job.

The sequence

  1. OPEN FRONT = PASS-THROUGH 38–50 mm · TRIMMING CRIMPER
  2. CLOSED END = STANDARD CUT FIRST · STANDARD CRIMPER
  3. CHECK THE PACK CAT · AWG · OD · PoE
  4. JACK OR PANEL = PUNCH-DOWN

Good to know

  • Copper past the face? New blade, new plug.
  • Wire short of the end? Cut off, redo.
