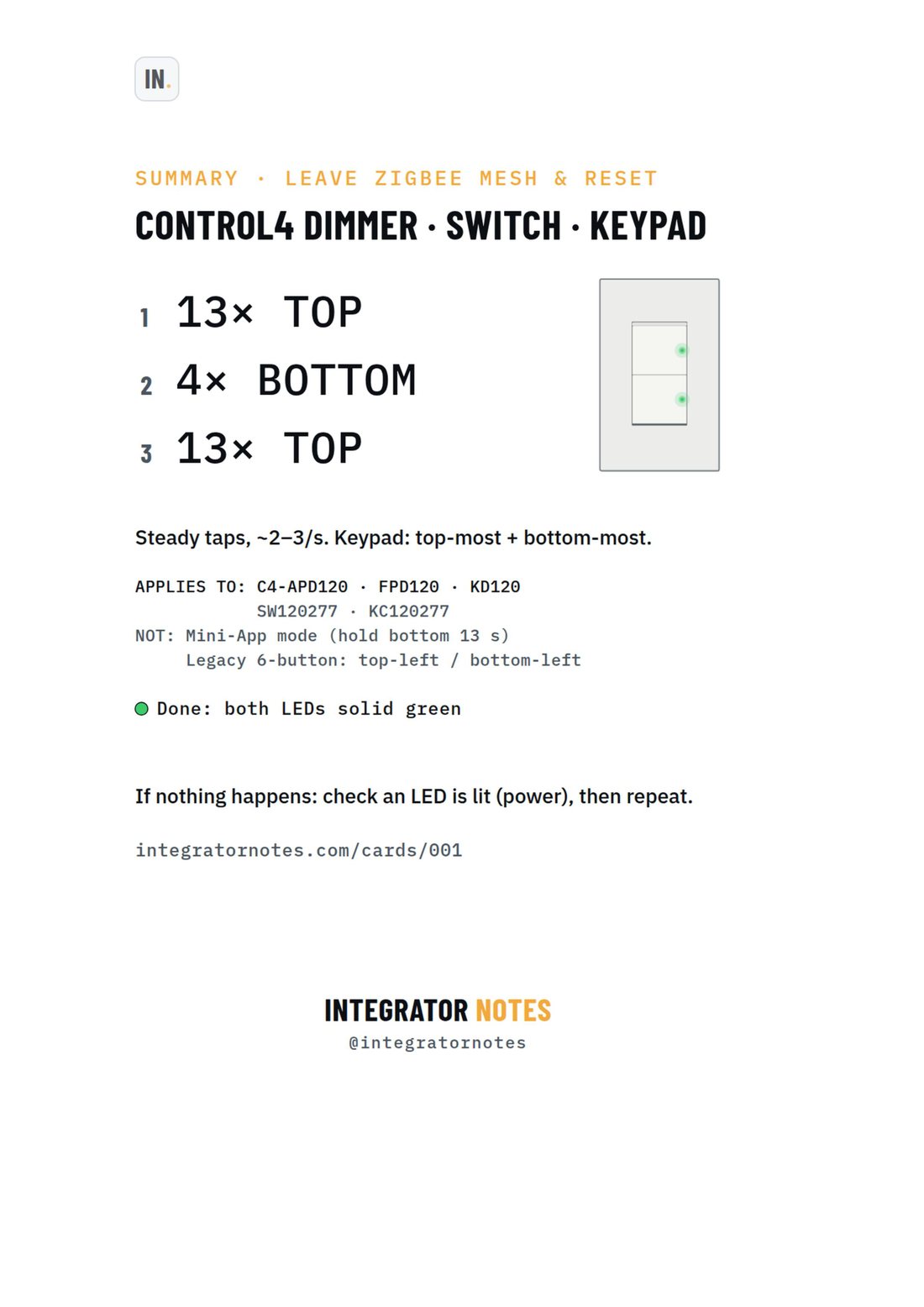

Field card 001, In-wall dimmer · switch · keypad: Tap the TOP button 13×, Tap the BOTTOM button 4×, Tap the TOP button 13×
A4 · PDF · prints in black and white Open full size
Control4Factory resetCard 001

Control4 In-wall dimmer · switch · keypad

Leave the Zigbee mesh and reset (13-4-13)

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before a reset you can't undo.

The sequence

  1. Tap the TOP button 13×
  2. Tap the BOTTOM button 4×
  3. Tap the TOP button 13×
Download PDF Print
