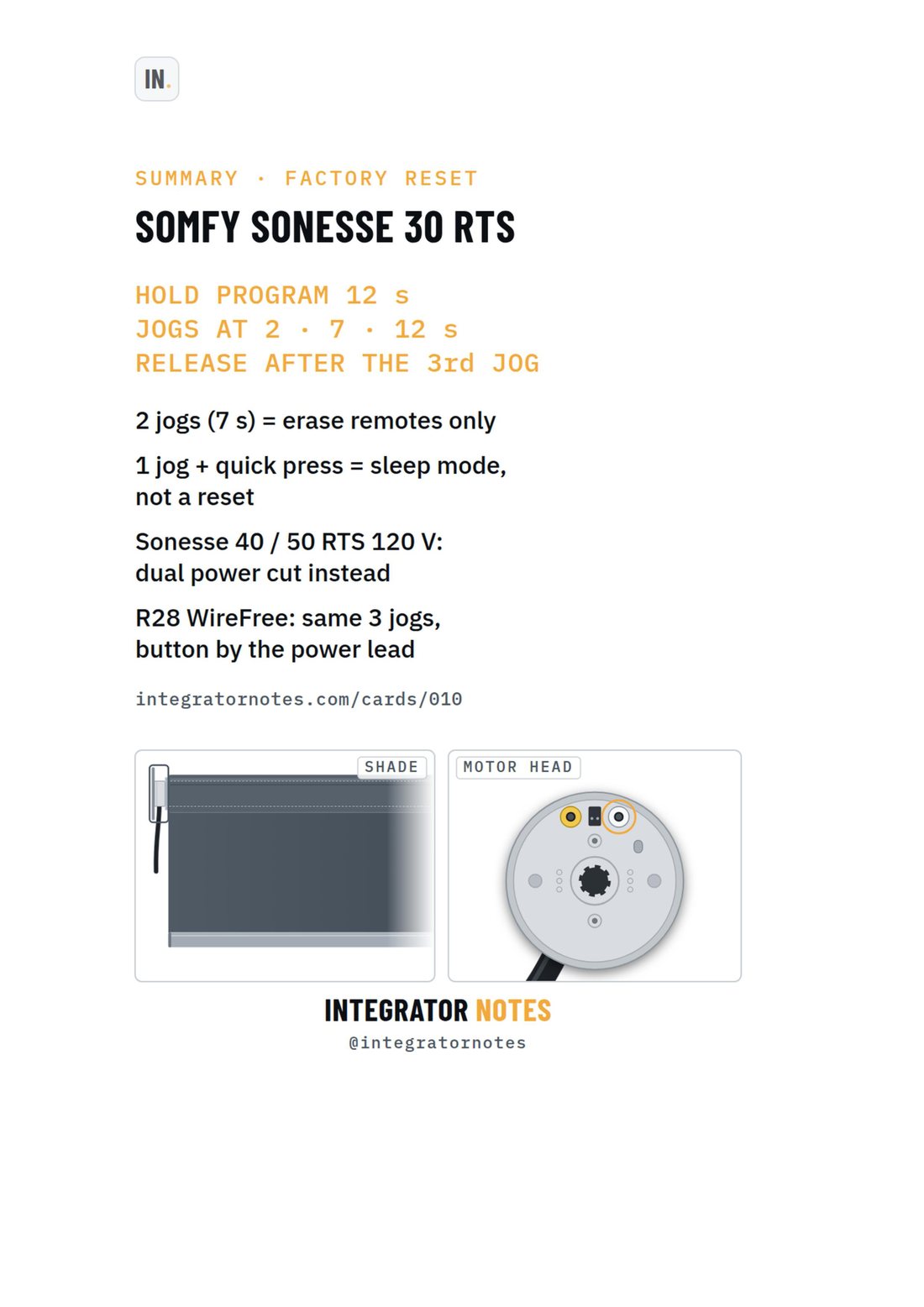

Field card 010, Sonesse 30 RTS motor: HOLD PROGRAM 12 s, JOGS AT 2 · 7 · 12 s, RELEASE AFTER THE 3rd JOG
A4 · PDF · prints in black and white Open full size
SomfyFactory resetCard 010

Somfy Sonesse 30 RTS motor

Factory reset (hold PROGRAM 12 s, 3 jogs)

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before a reset you can't undo.

The sequence

  1. HOLD PROGRAM 12 s
  2. JOGS AT 2 · 7 · 12 s
  3. RELEASE AFTER THE 3rd JOG

Good to know

  • 2 jogs (7 s) = erase remotes only
  • 1 jog + quick press = sleep mode, not a reset
  • Sonesse 40 / 50 RTS 120 V: dual power cut instead
  • R28 WireFree: same 3 jogs, button by the power lead
Download PDF Print
