Integrator Notes

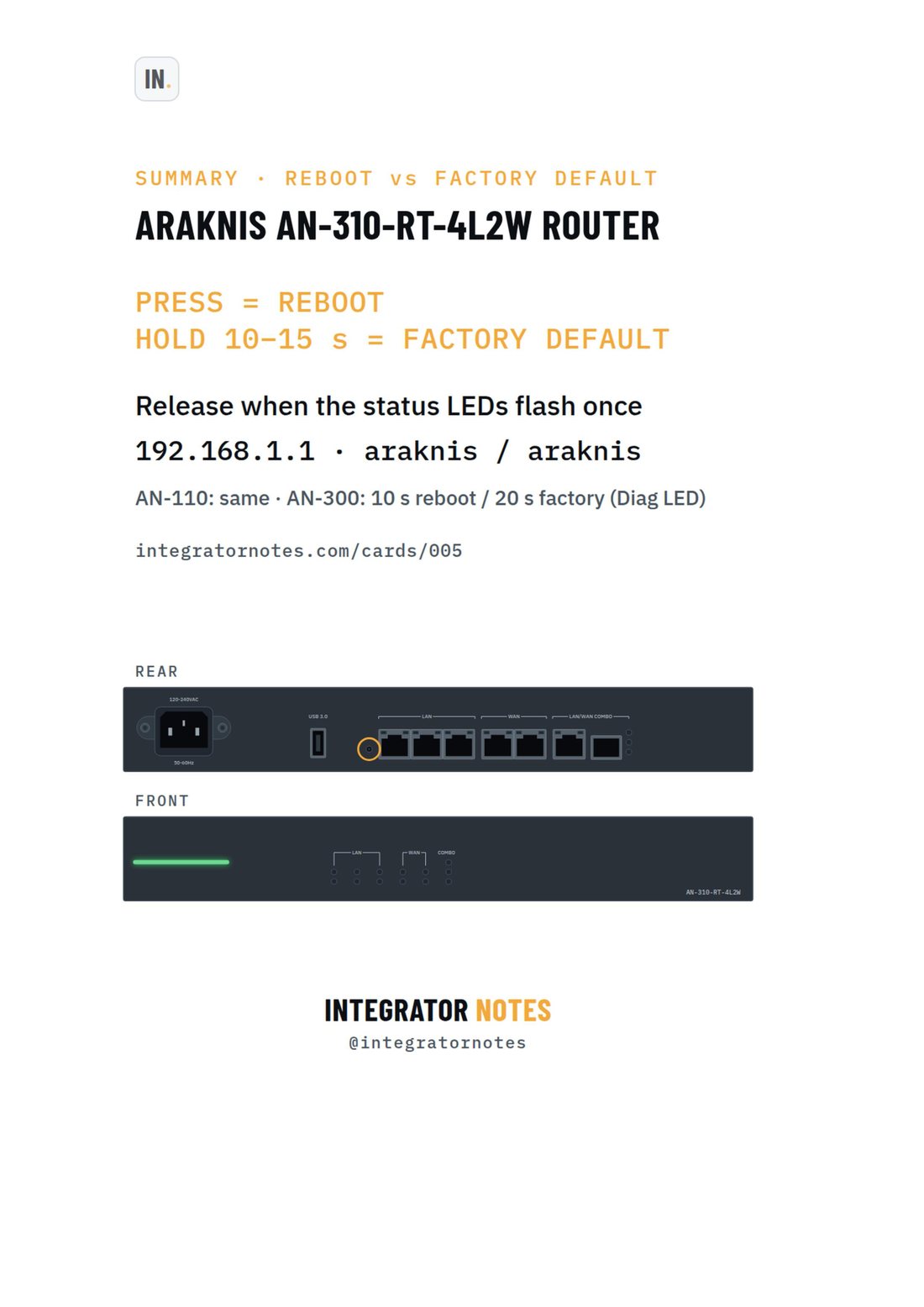

Field card 005, AN-310-RT router: PRESS = REBOOT, HOLD 10–15 s = FACTORY DEFAULT
A4 · PDF · prints in black and white Open full size
AraknisFactory resetCard 005

Araknis AN-310-RT router

Reboot vs factory default with the RESET button

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before a reset you can't undo.

The sequence

  1. PRESS = REBOOT
  2. HOLD 10–15 s = FACTORY DEFAULT

Good to know

  • Release when the status LEDs flash once
  • 192.168.1.1 · araknis / araknis
  • AN-110: same · AN-300: 10 s reboot / 20 s factory (Diag LED)
Download PDF Print
