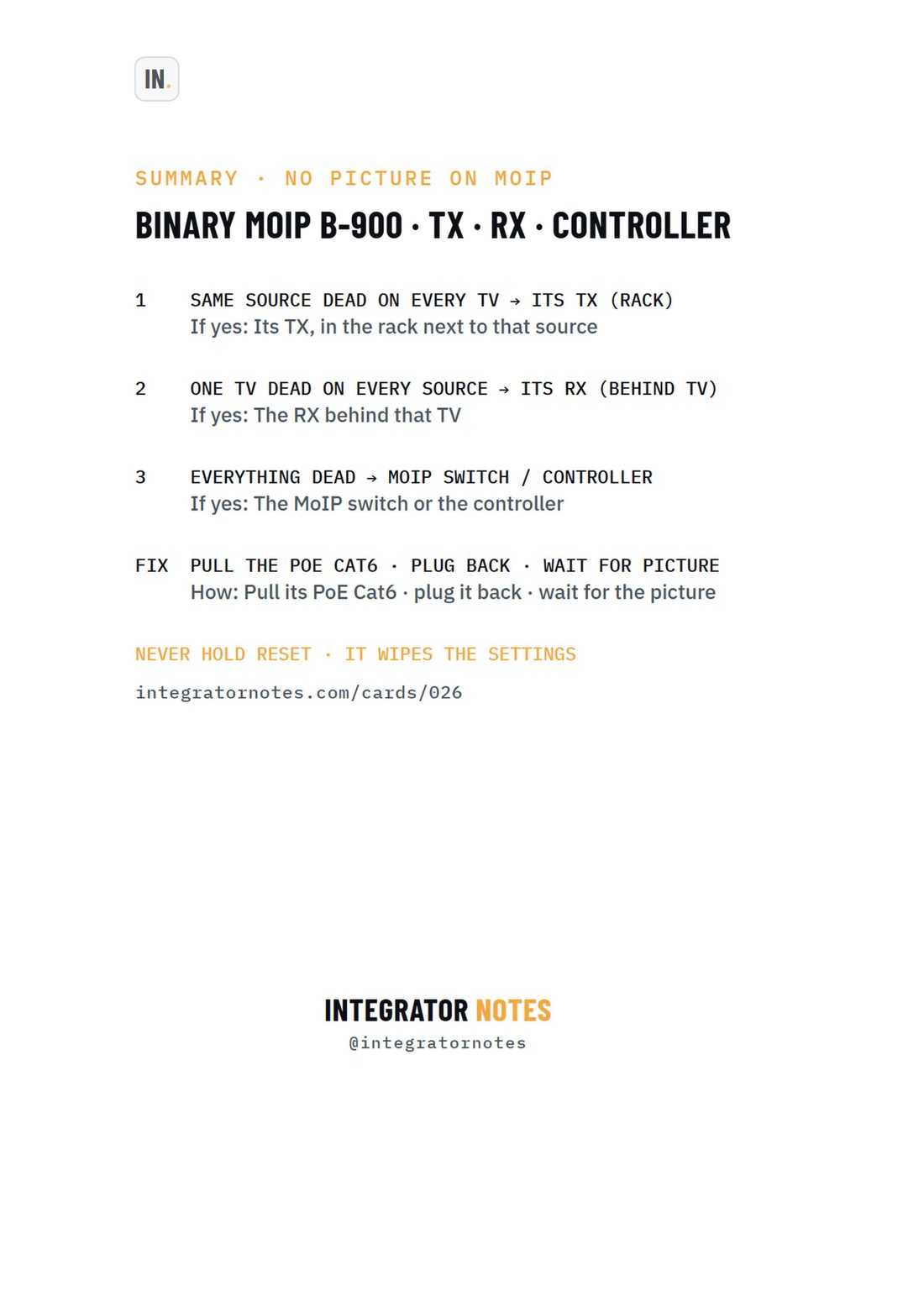

Field card 026, B-900 MoIP TX / RX: SAME SOURCE DEAD ON EVERY TV → ITS TX (RACK), ONE TV DEAD ON EVERY SOURCE → ITS RX (BEHIND TV), EVERYTHING DEAD → MOIP SWITCH / CONTROLLER, PULL THE POE CAT6 · PLUG BACK · WAIT FOR PICTURE
A4 · PDF · prints in black and white Open full size
BinaryTroubleshootingCard 026

Binary B-900 MoIP TX / RX

No picture? 3 checks, then power-cycle by pulling the PoE Cat6

Bench check pending

Written from official documentation and dealer sources, not yet run on our bench. Confirm on your hardware before you rely on it on a job.

The sequence

  1. SAME SOURCE DEAD ON EVERY TV → ITS TX (RACK)
  2. ONE TV DEAD ON EVERY SOURCE → ITS RX (BEHIND TV)
  3. EVERYTHING DEAD → MOIP SWITCH / CONTROLLER
  4. PULL THE POE CAT6 · PLUG BACK · WAIT FOR PICTURE
Download PDF Print
